A box for storing socket heads (to prevent picking up the wrong tool to tighten or skipping steps) by setting the operation to be consistent with the operation of the tool.

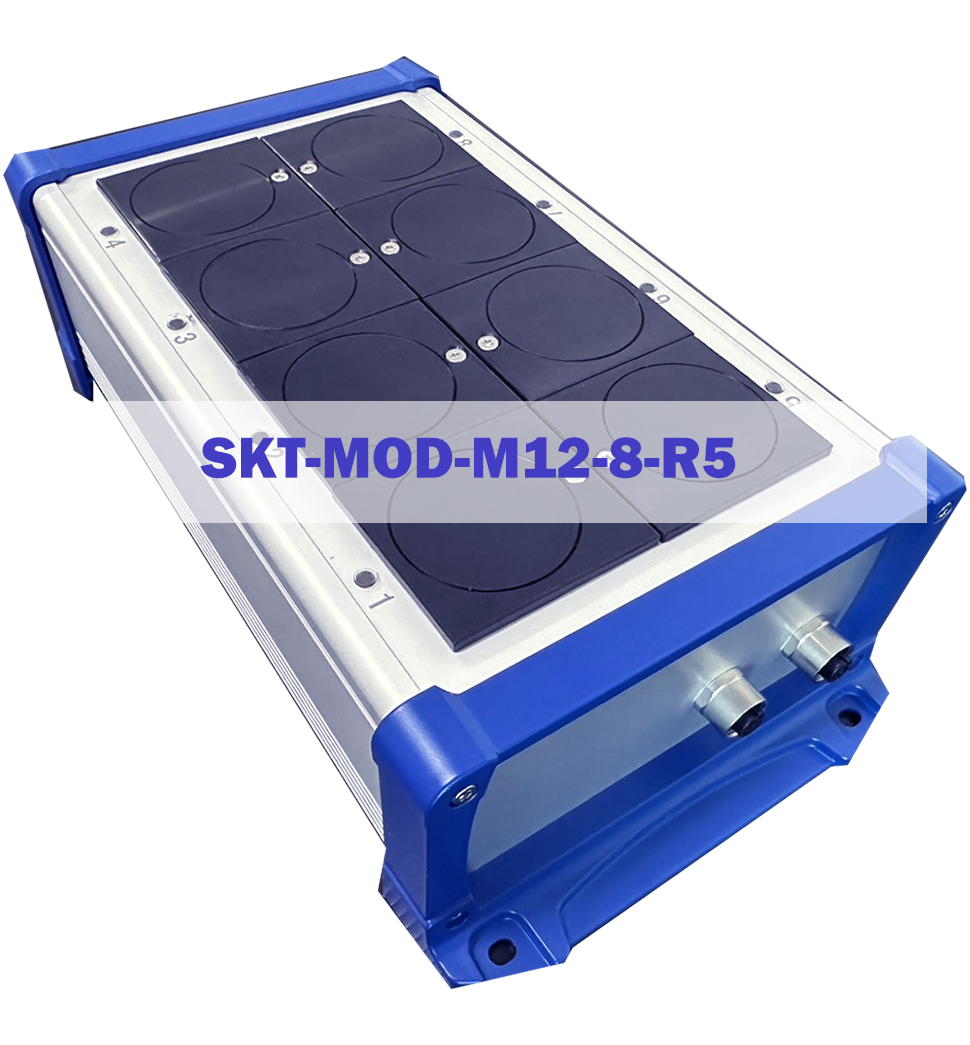

SKT-MOD-8

PART NUMBER : SKT-MOD-M12

  • Product                     | Enclosure             | Weight | Number of sockets   | Max       | Connector M12  | Price
  • SKT-MOD-M12-3-R5        | 276 x 113 x 72 (mm)   |    1.1 Kg      |     3-slot                                          |  56.5 mm       |   2                                          |   37,000 (THB)
  • SKT-MOD-M12-4-R5        | 276 x 113 x 72 (mm)   |    1.0Kg      |    4-slot                                          |  39.5 mm       |   2                                          |   35,000 (THB)
  • SKT-MOD-M12-8-R5        | 281 x 148 x 82(mm)   |    1.5 Kg     |     8-slot                                          |  39.5 mm      |   2                                          |   45,000 (THB)
SKT-MOD-M12-3-R5

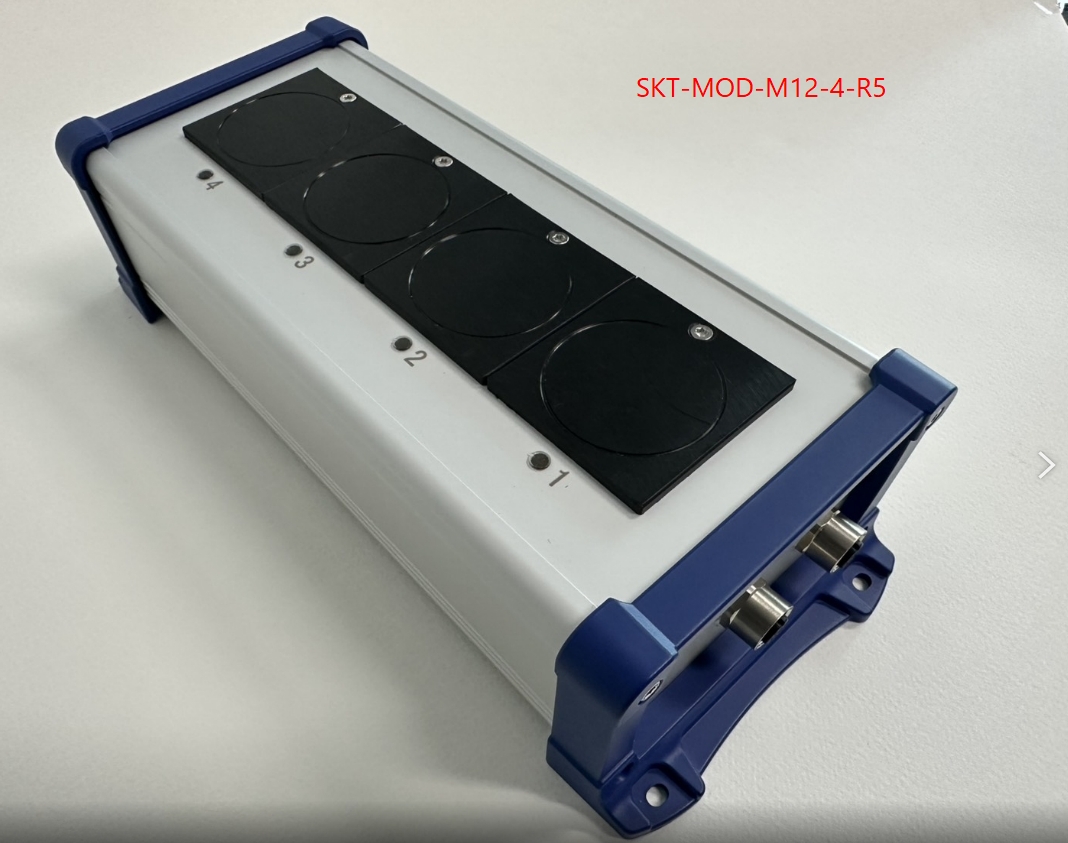

SKT-MOD-M12-4-R5
SKT-MOD-M12-8-R5

SKT-MOD-M12-3-R5

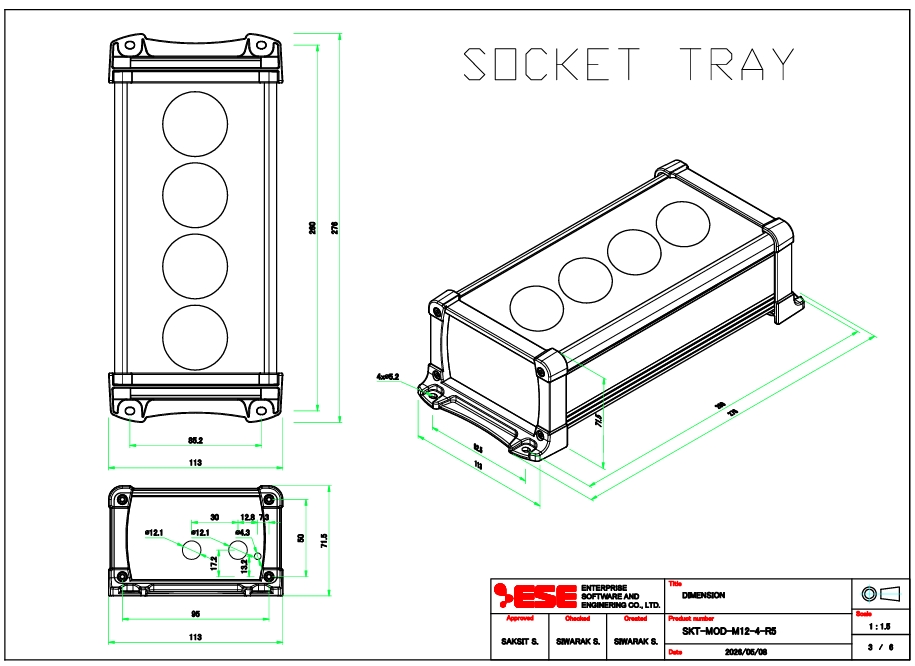

SKT-MOD-M12-4-R5

SKT-MOD-M12-8-R5

SPEFICATION:
>> 3, 4, 8-slot socket tray with 3 colors status LED
>> Rugged aluminum casing
>> Maximum socket diameter of 39.5 - 56.5 mm

FUNCTION:
>> RS-485 non-isolated Interface

>> M12 A Type with 4 pin connectors

>> Controlled as ASCII command

>> Modbus-RTU-Slave (Optional)

>> Supply: 12 - 26VDC, Current < 100mA

>> Operating temperature: 10 .. 50°C
