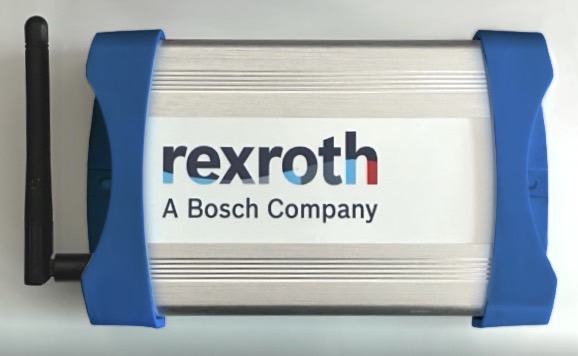

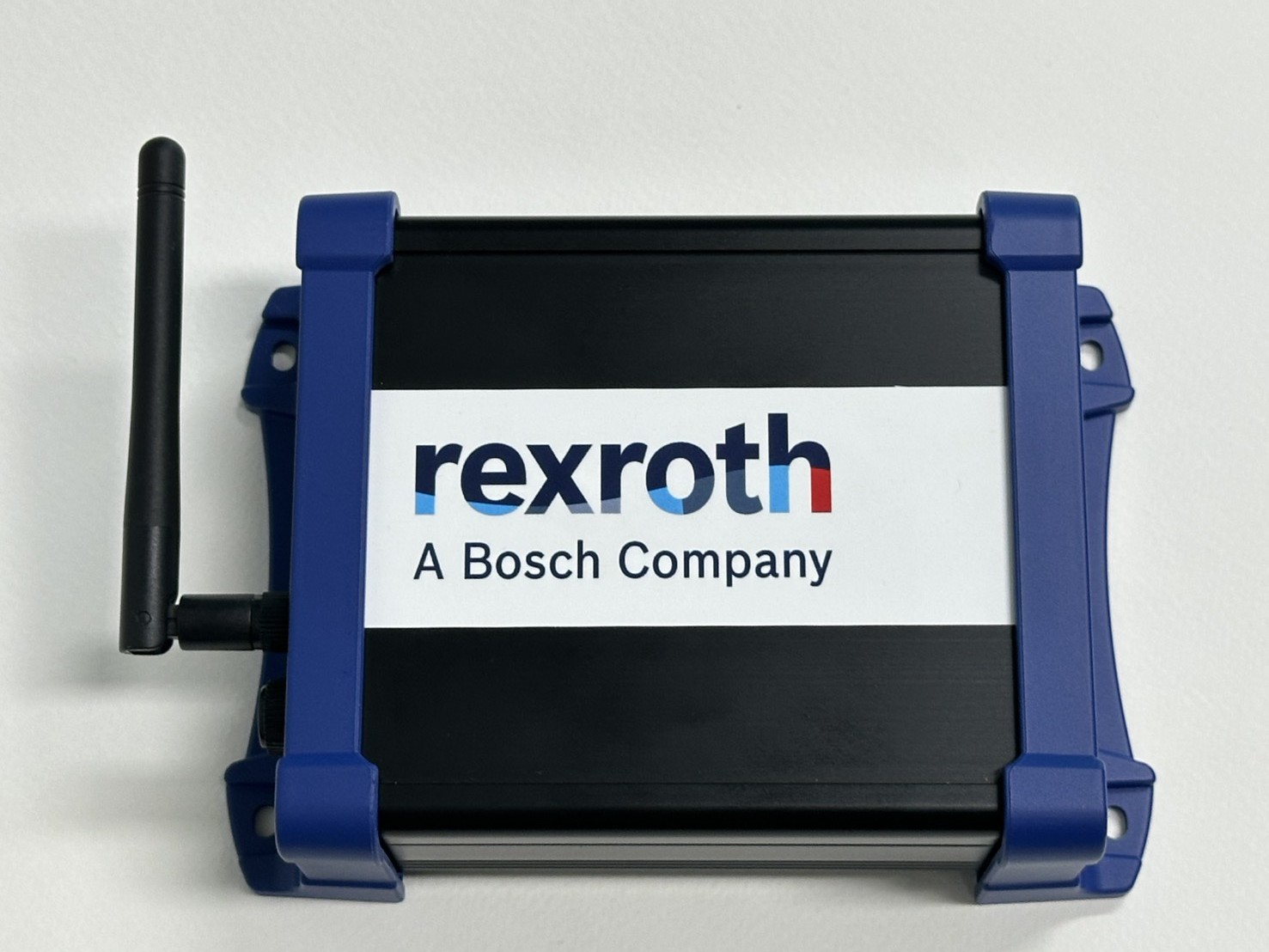

PART NUMBER : CTL2-W1-REX-R1
Technical data:
>> Controller box for an Automation System
>> To controlled Bosch tool via Rexroth Open Protocol up to 3 tools
>> Rugged aluminium casing, Black bodies
>> 1 x Wi-Fi Version 6, 2.4/5.0GHz frequency bands
>> 1 x Bluetooth 5, BLE
>> 1 x RS-232 port
>> 4 x Digital 12 - 24V PNP/NPN type input
>> 4 x Relay type output, Contact rate: Max 26VDC with 250mA/Ch.
>> Dimensions : W x H x D = 130 x 113 x 56.5 mm
>> Weight : approx. 0.45Kg
>> Supply : 12-26V, 0.3A
>> Operation temperature : 10 .. 50°C

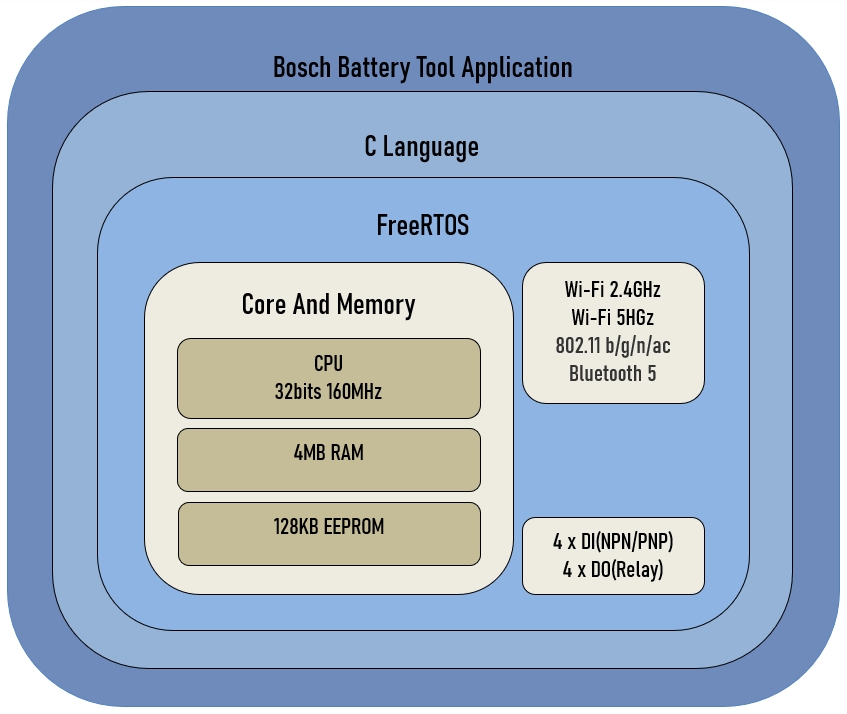

Diagram of Smart Box
Function:
>> To support Rexroth Open Protocol V1.0 via Wi-Fi
>> To support select tool via 4 bits digital input
>> To controlled for 3 Bosch tools
>> To send OK and NG to System
>> Smart Box will send Batch Size to Bosch tool
>> Bosch tool will Green LED blinking during job
Enclosure dimensions:
