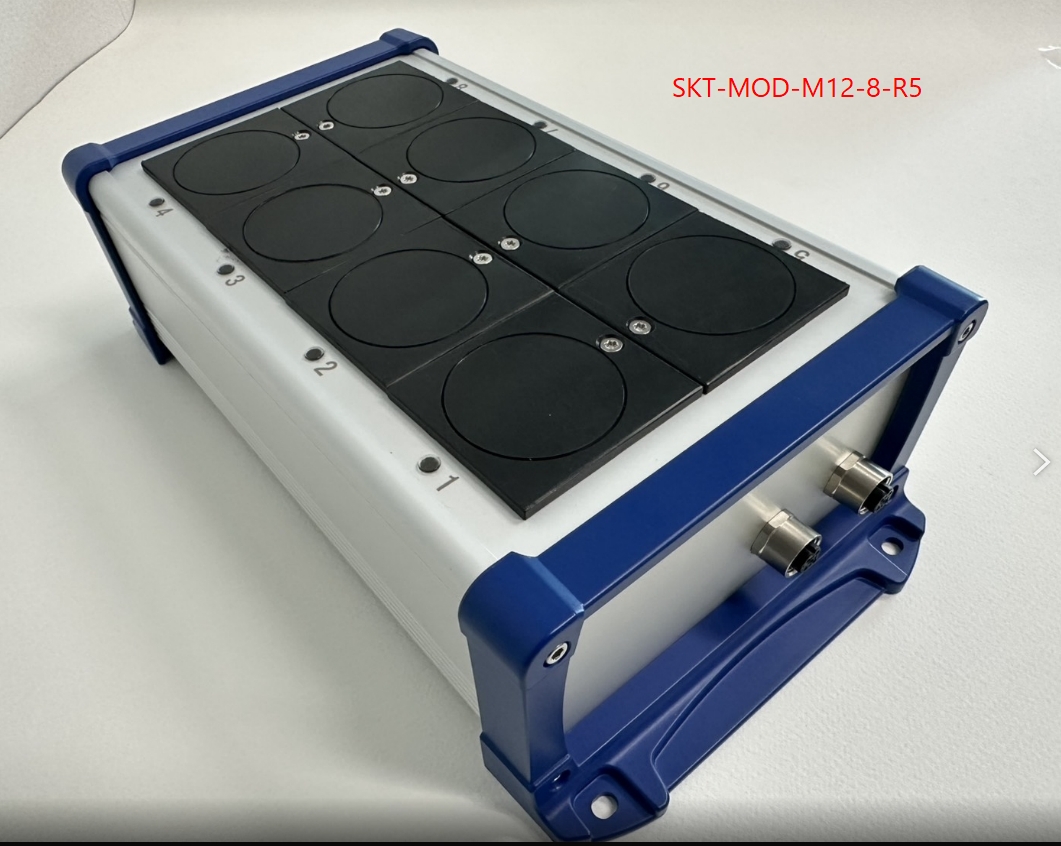

A box for storing socket heads (to prevent picking up the wrong tool to tighten or skipping steps) by setting the operation to be consistent with the operation of the tool.
PART NUMBER : SKT-MOD-M12-8-R5
Price: 45,000 (THB)
Overview:
>> The socket trays can operate in industrial environments.It can be connected and controlled directly using Modbus RTU (Slave),
and also using ASCII command (specific commands that are easy to understand)
It will have 2 x M12 A type connectors for power supply and communication.
Each slot has one LED displaying three colors (red, yellow and green)
Technical data:
>> RS-485 non-isolated interface
>> Controlled as Modbus RTU (slave)
>> Controlled as ASCII command
>> 8 Slots for sockets
>> Minimum socket diameter of 7.8mm
>> Maximum socket diameter of 39.5mm
>> 3 colors status
>> 12 - 26VDC power supply, Current < 100mA @ 24VDC
>> 10 .. 50 °C operation temperature
>> Rugged aluminium casing, PC + ABS UL94V0 Flanged Frames
>> W x H x D 281mm x 148mm x 82mm
>> Weight approx. 1.5Kg

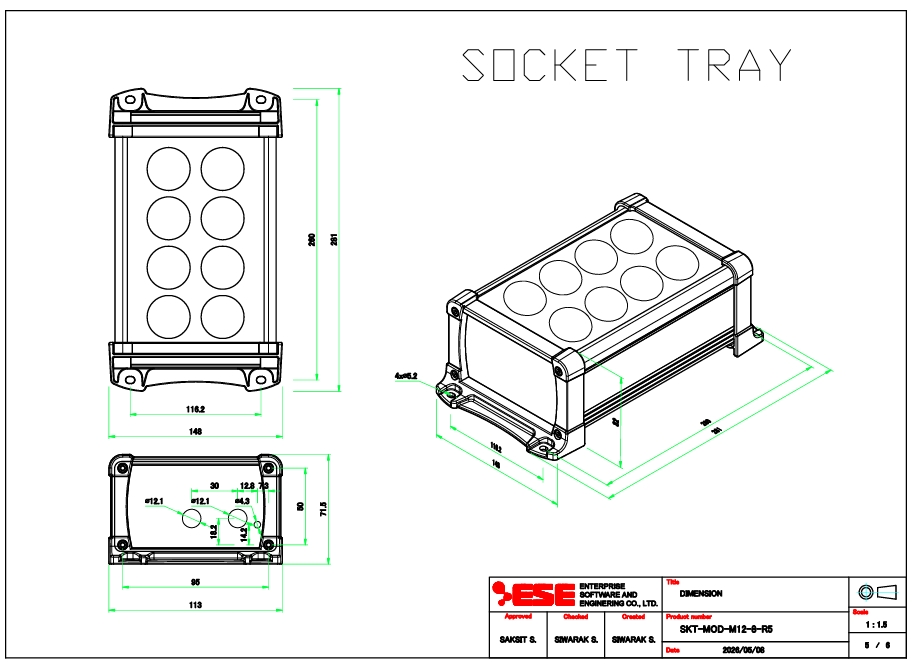

Enclosure dimensions:
- Drawing of the SKT-MOD-M12-8-R5
