A box for storing socket heads (to prevent picking up the wrong tool to tighten or skipping steps) by setting the operation to be consistent with the operation of the tool.

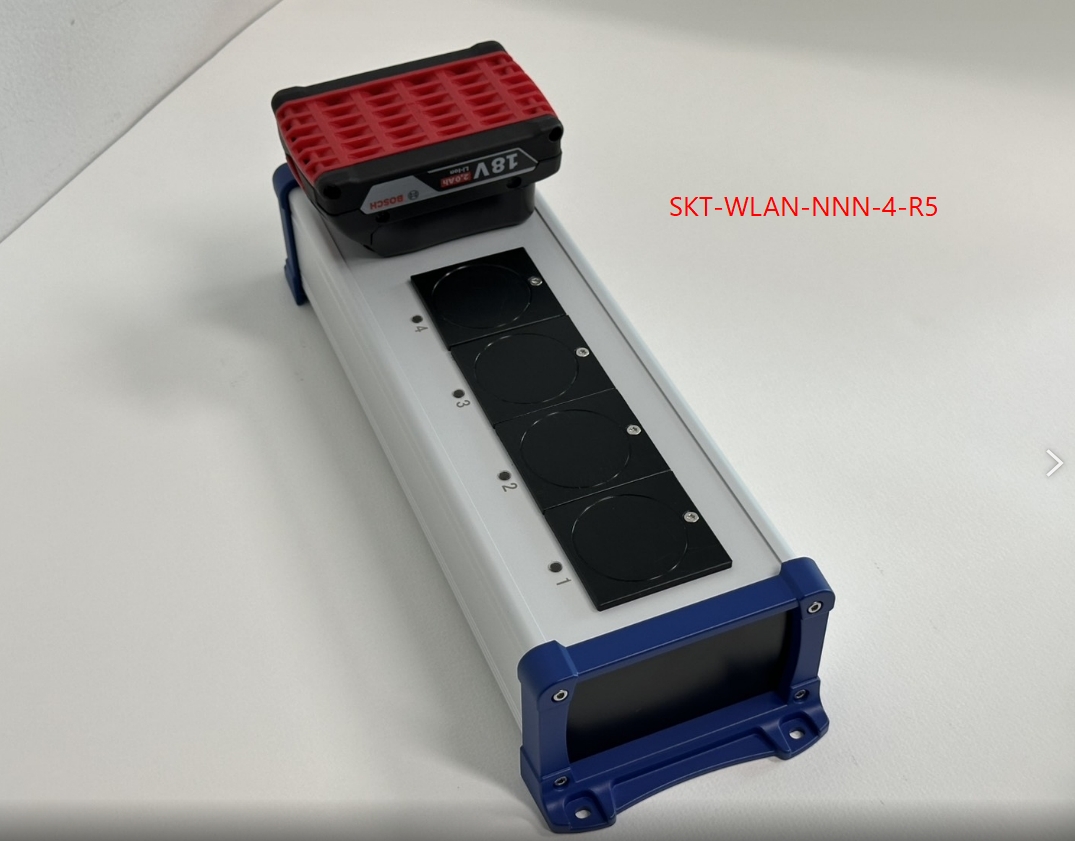

PART NUMBER : SKT-WLAN-NNN-4-R5
Price: 47,000 (THB)
*This price without battery*
Overview:
>> The socket trays can operate in industrial environments.
It can be connected and controlled directly using Modbus TCP (slave) with port 502,
, ASCII command (specific commands that are easy to understand) with TCP/IP port 9000
and also using Rexroth Open Protocol R1.0 ( Rexroth OP R1.0 ) with port 4545
It will have Bosch battery connectors for power supply and Wi-Fi version 6 for communication.
Both 2.4GHz and 5GHz Wi-Fi use 20MHz bandwidths.
Each slot has one LED displaying three colors (red, yellow and green)
Technical data:
>> Wi-Fi version 6 interface
>> Both 2.4GHz and 5GHz Wi-Fi use 20MHz bandwidths.
>> Controlled as Modbus TCP (slave), port 502
>> Controlled as ASCII command via TCP/IP, port 9000
>> Controlled as Rexroth Open Protocol R1.0 ( Rexroth OP R1.0 ) with port 4545
>> AP Mode for web-based configuration
>> 4 Slots for sockets
>> Minimum socket diameter of 7.8mm
>> Maximum socket diameter of 39.5mm
>> 3 colors status
>> Bosch 18V battery for power supply
>> 15 - 26VDC power supply, Current < 150mA @ 18VDC
>> 10 .. 50 °C operation temperature
>> Rugged aluminium casing, PC + ABS UL94V0 Flanged Frames
>> W x H x D 346mm x 113mm x 90mm
>> Weight approx. 1.2Kg (without battery)
Enclosure dimensions:

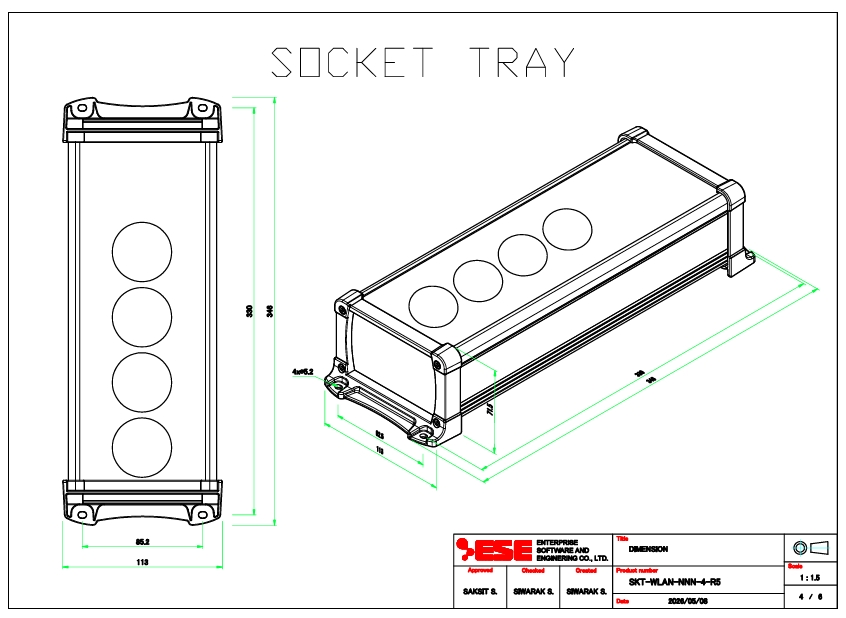

- Drawing of the SKT-WLAN-NNN-4-R5
