A box for storing socket heads (to prevent picking up the wrong tool to tighten or skipping steps) by setting the operation to be consistent with the operation of the tool.

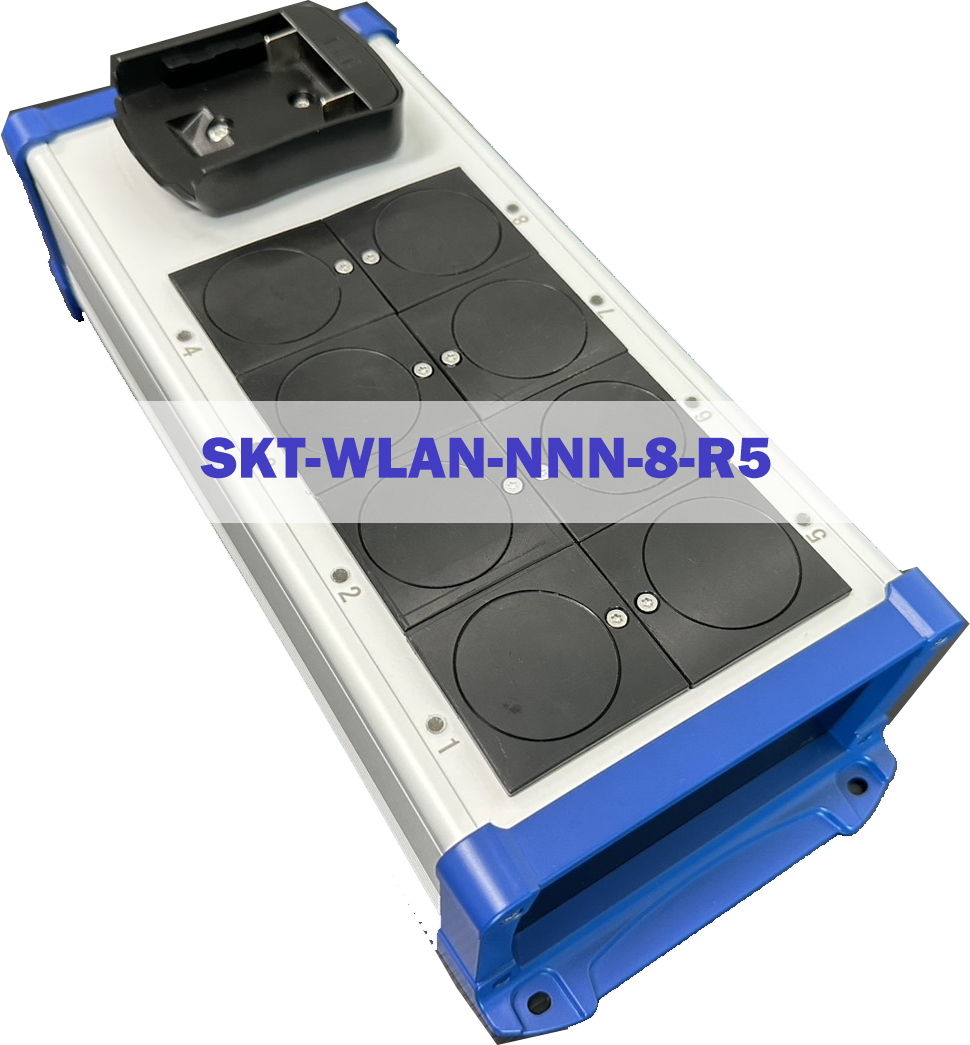

SKT-WLAN-8

PART NUMBER : SKT-WLAN-NNN

  • Product                     | Enclosure             | Weight | Number of sockets   | Max       | Price
  • SKT-WLAN-NNN-3-R5    | 346 x 113 x 90 (mm)   |    1.3 Kg       |     3-slot                                        |  56.5 mm       |   49,000 (THB)
  • SKT-WLAN-NNN-4-R5    | 346 x 113 x 90 (mm)   |    1.2 Kg       |     4-slot                                        |  39.5 mm       |   47,000 (THB)
  • SKT-WLAN-NNN-3-R5    | 351 x 148 x 100 (mm) |    1.8 Kg       |     8-slot                                        |  39.5 mm       |   57,000 (THB)

**Weight: (Without Battery)

SKT-WLAN-NNN-3-R5
SKT-WLAN-NNN-4-R5
SKT-WLAN-NNN-8-R5

SKT-WLAN-NNN-3-R5

SKT-WLAN-NNN-4-R5

SKT-WLAN-NNN-8-R5

SPEFICATION:

>> 3, 4, 8-slot socket tray with 3 colors status LED
>> Rugged aluminum casing
>> Maximum socket diameter of 39.5 - 56.5 mm

FUNCTION:
>> Wireless LAN Version 6

>> 2.4 GHz and 5 GHz frequency bands

>> 20 MHz, 40 MHz bandwidths

>> Controlled as ASCII command

>> Modbus-TCP-Slave (Optional)

>> Rexroth Open Protocol (Optional)

>> Supply: 15 - 26VDC, Current < 150mA

>> Operating temperature: 10 .. 50°C
